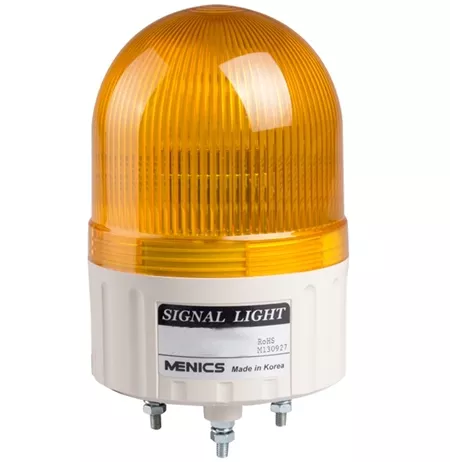

Menics ASGF-01-Y 86mm Beacon Light, 12V, Yellow, Steady/Flashing

Description

The Menics ASGF-01-Y 86 mm signal beacon light is 12V DC with a yellow prism lens and an incandescent light. Steady or flashing mode, with a flash rate of 80 times per minute. Stud mounted. Made to be seen at long distances and at night. Used in a number of applications such as in small machines, construction, and road safety. Can be installed vertically or horizontally when indoors, or vertically when outdoors. Steady or flashing mode is chosen depending on the wiring (see wiring diagram). Rated IP 42. Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.

Specifications

• Mounting- Stud Mounting (see mounting accessories below)
• Light & Bulb Type- Steady or Flashing
• Power Supply- 12V DC
• Lens Color- Yellow
• Lens Material- Polycarbonate Resin
• Buzzer- No
• Current Draw- 0.67 Amps, 8 Watts
• Brightness- 26 Lumens, 2070 mcd
• Flash Rate- 80 times per minute
• Dimensions- 143 mm Height x 86 mm Diameter (5.62″ x 3.38″)
• Ambient Temperature- -15 C to 40 C (5 F to 104 F)
• Storage Temperature- -25 C to 70 C (-13 F to 158 F)
• Ambient Humidity- 45-85% Relative Humidity
• Recommended Wire Size- UL1007 22 AWG
• IP Protection- IP 42 (Protected against solid objects over 1.0 mm and falling drops of water, up to 15 degrees from vertical)
• Approvals- RoHS, CE

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
