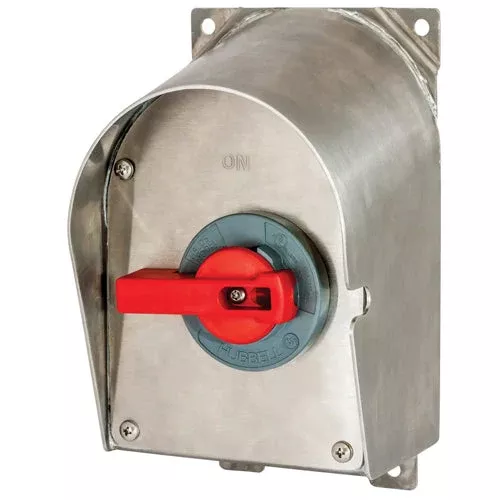

Hubbell HBLDS10SSRVFD, Stainless Steel Circuit-Lock Unfused Disconnect Switch, For Use With Variable Frequency Drives, Sloped Top, 100A 600V AC, 3-Pole, NEMA 4X Enclosure

Sale!
Hubbell HBLDS10SSRVFD, Stainless Steel Circuit-Lock Unfused Disconnect Switch, For Use With Variable Frequency Drives, Sloped Top, 100A 600V AC, 3-Pole, NEMA 4X Enclosure

Hubbell HBLDS10SSRVFD, Stainless Steel Circuit-Lock Unfused Disconnect Switch, For Use With Variable Frequency Drives, Sloped Top, 100A 600V AC, 3-Pole, NEMA 4X Enclosure

Original price was: $1,495.82.Current price is: $786.15.

89 in stock

SKU: HBLDS10SSRVFD Category:

Description

  • Formed in nonporous 304 stainless steel
  • IP69k and Type 4X,12K water ingress protection
  • Certified by NSF for hygiene in food processing applications
  • Highly visible red handle which meets OSHA Lockout/Tagout capabilities
  • Accepts up to 2 Auxiliary contacts
Enclosure: Base and Top 14 Gauge Type 304 Stainless Steel
Conduit Hub 1-1/4 in. Zinc
Enclosure Gasket Neoprene
Enclosure Screws Stainless Steel
Current Interrupting Certified for current interrupting at full rated current and voltage
Dielectric Voltage Withstands 3000V AC minimum
Max. Working Voltage 600V AC RMS
Mounting Feet are fixed
Moisture Resistance Indoor and Outdoor – Type 4X (Wash down, Corrosion resistant); Indoor – Type 12 (Dust-tight, Falling Dirt, Noncorrosive Liquids).
Operating Temperature Max. Continous: 75°C; Min. Continuous: -40°C without impact
Listings cULus Listed
NSF Certified
