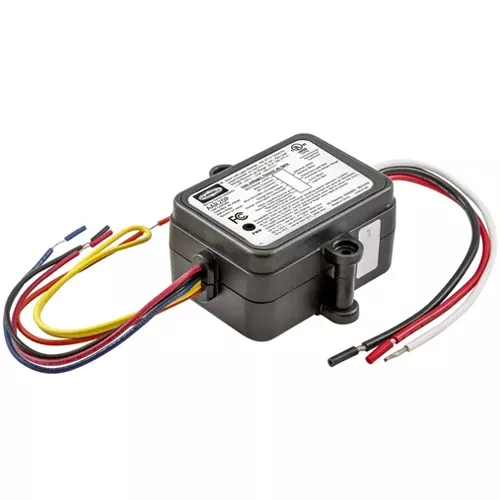

Hubbell AAR20P, Add-A-Relay, Heavy Duty Latching Relay, Automatic or Manual On Operation, Black

Sale!
Hubbell AAR20P, Add-A-Relay, Heavy Duty Latching Relay, Automatic or Manual On Operation, Black

Hubbell AAR20P, Add-A-Relay, Heavy Duty Latching Relay, Automatic or Manual On Operation, Black

Original price was: $118.25.Current price is: $70.55.

53 in stock

SKU: AAR20P Category:

Description

Auto or manual ON operation, 100-277V AC 50/60Hz. Requires a CU300 series, heavy duty latching relay; suitable for automatic receptacle control applications.

AT Sensor/AAR Capacity Requires control unit CU300 A/M/HD
Load Capacity 20A, 100-277V; 1HP @ 120V AC; 2HP @ 240/277V
Motor Loads 1HP @ 120V, 2HP @ 240/277V
Power Requirement 30mA, 24V DC
Relay Heavy duty; magnetic latching. Silver alloy contacts. Very low standby power consumption
Housing Flame retardant UL 94-5VA thermoplastic
Dimensions 4.00″L x 3.4″W x 1.73″H
Hardware Included
Power Supply 100-277V AC, 50/60 Hz
Operating Temperature -40°F (-40 °C) to 149°F(65 °C)
Listings UL/cUL 916 Listed for Energy Management
CEC Title 24 Compliant
ASHRAE 90.1 complian
